Compose terminal layouts with horizontal and vertical panels. Attach borders, set individual widths/heights, and nest arbitrarily deep.

Install

composer require sugarcraft/sugar-boxer

Quickstart

use SugarCraft\Boxer\SugarBoxer;
use SugarCraft\Sprinkles\{Align, Border};

$boxer = SugarBoxer::new();

$layout = $boxer->vertical(
    $boxer->horizontal(
        $boxer->leaf('Left panel'),
        $boxer->leaf('Right panel'),
    ),
    $boxer->leaf('Bottom bar'),
);

echo $boxer->render($layout, 60, 20);

What's in the box

Source & demos

• Source on GitHub
• Full README
• Runnable examples
• Port of treilik/bubbleboxer (Go upstream)

Try the quickstart →

API

Class	Method	Description
SugarBoxer	new()	Create a boxer instance
SugarBoxer	leaf(string)	Leaf node with string content
SugarBoxer	horizontal(Node ...)	Horizontal (row) layout
SugarBoxer	vertical(Node ...)	Vertical (column) layout
SugarBoxer	noBorder(Node)	Flat layout without separators
SugarBoxer	render(Node, int $width, int $height)	Render to ANSI string
Node	leaf(string)	Static leaf constructor
Node	horizontal(Node ...)	Static horizontal constructor
Node	vertical(Node ...)	Static vertical constructor
Node	noBorder(Node)	Static no-border constructor
Node	withMinWidth(int)	Minimum width hint
Node	withMaxWidth(int)	Maximum width hint
Node	withMinHeight(int)	Minimum height hint
Node	withMaxHeight(int)	Maximum height hint
Node	withPadding(int)	Inner padding (cells)
Node	withBorder(bool)	Show/hide box border
Node	withSpacing(int)	Gap between children (cells)
Node	withBorderStyle(?Border)	Border char set from candy-sprinkles
Node	withStyle(?Style)	Style (color, attributes) from candy-sprinkles
Node	withTitle(string)	Box title text
Node	withMargin(int $top, ...)	Outer margin (top/right/bottom/left)
Node	withAlignH(Align)	Horizontal text alignment
Node	withAlignV(VAlign)	Vertical text alignment

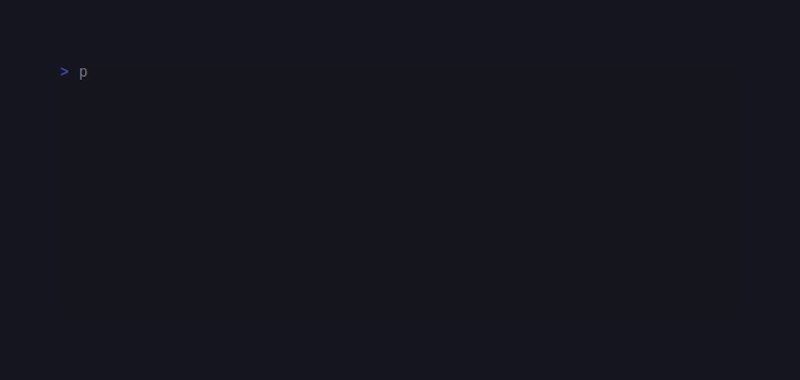

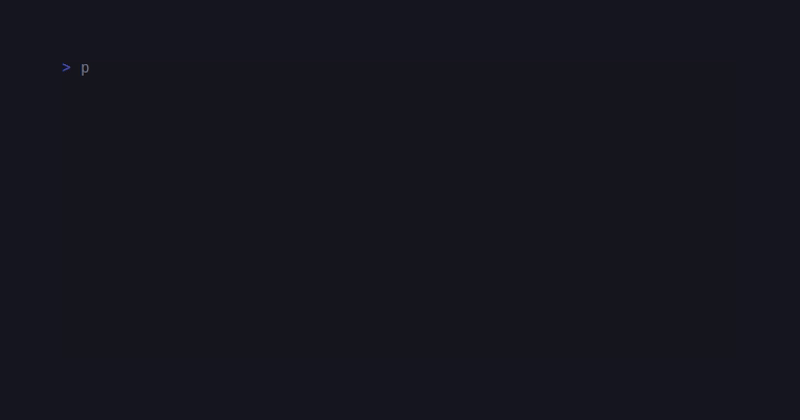

Demos.

VHS-recorded GIFs of every example shipped with the library. Regenerated automatically on every push that touches the source.
