SugarVeil

Terminal overlay compositor

port of rmhubbert/bubbletea-overlay overlaycompositingui

Composite overlay views (modals, tooltips, toasts) on top of a base TUI frame. Render your models first, then let the compositor handle positioning, backdrop dimming, z-ordering, animated transitions and click-outside hit-testing.

Install

composer require sugarcraft/sugar-veil

Quickstart

use SugarCraft\Veil\{Position, Veil, VeilStack};

$veil = Veil::new()->withBackdrop(40);   // dim the background to 40%

// Composite a foreground string centered over a background string
echo $veil->composite($modalView, $baseView, Position::CENTER, Position::CENTER);

// Layer several overlays by z-index
$stack = VeilStack::new()
    ->add(Veil::new()->withContent($modalView)->withZIndex(1))
    ->add(Veil::new()->withContent($tooltip)->withZIndex(2)
        ->withPosition(Position::TOP, Position::RIGHT));
echo $stack->compositeAll($baseView);

What's in the box

PositioningNine anchors — Top, Right, Bottom, Left, Center and the four corners — plus X/Y offsets in cells (columns/rows).

Backdrop dimmingTruecolor opacity blend (0–100) applied to plain background lines during assembly.

Animated transitionswithAnimation() + animate(…, $progress): SLIDE enters from the anchored edge, SCALE reveals lines from the center outward, and FADE brightens the overlay in from black through a truecolor gray pen (terminals cannot alpha-blend), returning the original bytes at full opacity.

VeilStackOrdered collection of veils rendered by ascending z-index; maxZIndex() / minZIndex() return null for an empty stack, since 0 is a real z-index.

Click-outside dismisswithClickOutsideDismiss() + scan() / isClickOutside() via candy-mouse zones. The scanned zones travel with the veil across later with*() calls, so a click is judged against the frame that was on screen.

Buffer diffingcomposite() diffs against the previous frame and emits only changed cells. An empty background returns the overlay itself as the frame (upstream's bg == "" early return), and colours are clamped when the diff pen is built: truecolor SGR components to 0–255, and 256-colour indices to 0–255, so 38;5;300 cannot widen a cell and a negative index no longer falls back to white.

Border chrome & auto-sizewithBorder() wraps veil content in a terminal border; withAutoSize() sizes the veil from its content.

Source & demos

Source on GitHub
Full README
Runnable examples
Port of rmhubbert/bubbletea-overlay (Go upstream)

Try the quickstart →

API

Class	Method	Description
Veil	new()	Create a new veil
Veil	composite(foreground, background, Position $vertical, Position $horizontal, int $xOffset = 0, int $yOffset = 0)	Composite one string over another; offsets are cells
Veil	animate(foreground, background, $vertical, $horizontal, float $progress, $xOffset = 0, $yOffset = 0)	Composite with the configured animation applied at progress 0..1
Veil	withBackdrop(int) / withAnimation(?AnimationKind) / withZIndex(int) / withPosition(?Position, ?Position, x, y) / withContent(string) / withBorder(?Border) / withAutoSize() / withClickOutsideDismiss()	Immutable configuration; scanned zones survive every with*()
Veil	scan(rendered) / hit(col, row) / isClickOutside(MouseMsg)	Zone hit-testing; isClickOutside() throws when dismissal is on but scan() has not run
VeilStack	new() / add(Veil) / removeWhere(\Closure) / filter(\Closure) / clear()	Immutable stack of veils
VeilStack	composite(background, $vertical, $horizontal, $xOffset = 0, $yOffset = 0) / compositeAll(background)	Render every veil by ascending z-index, at a shared position or each at its own
VeilStack	maxZIndex(): ?int / minZIndex(): ?int	Highest / lowest z-index, null for an empty stack
VeilStack	sorted() / all() / isEmpty() / count()	Queries (count() via Countable)

SugarVeil

Install

Quickstart

What's in the box

Source & demos

API

Demos.

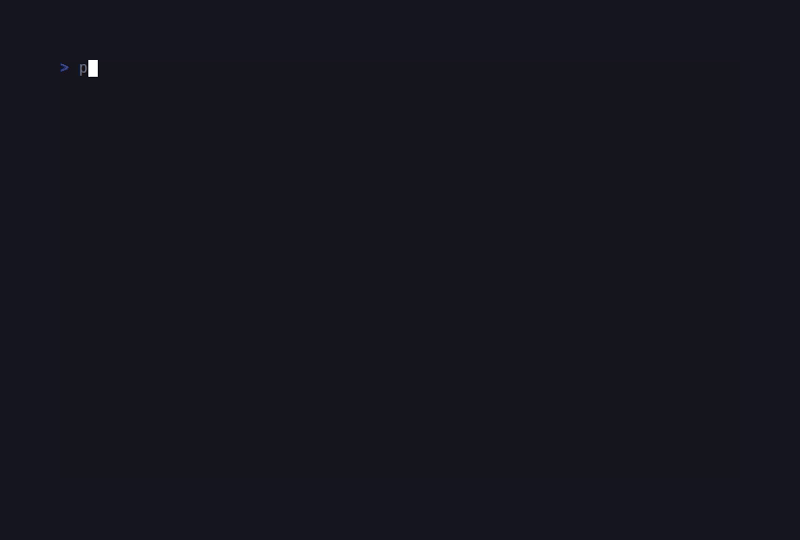

Modal overlay

Multiple overlays
